The Heron Filling Line is a versatile fully automatic filling machine suitable for a variety of products

From chemical liquids to food products, the machine can be easily customized to meet your specific needs. This makes it an excellent choice for companies that work with multiple product lines and need to quickly switch between different filling recipes.

One of the biggest advantages of the Heron Filling Line is its easy operation. The machine is equipped with an intuitive touch screen on which the operator can select pre-programmed recipes. This allows users to quickly switch between different filling processes. Moreover, the machine can be linked to an ERP system so that it is possible to fully integrate the filling process into your existing business processes.

Get in touch

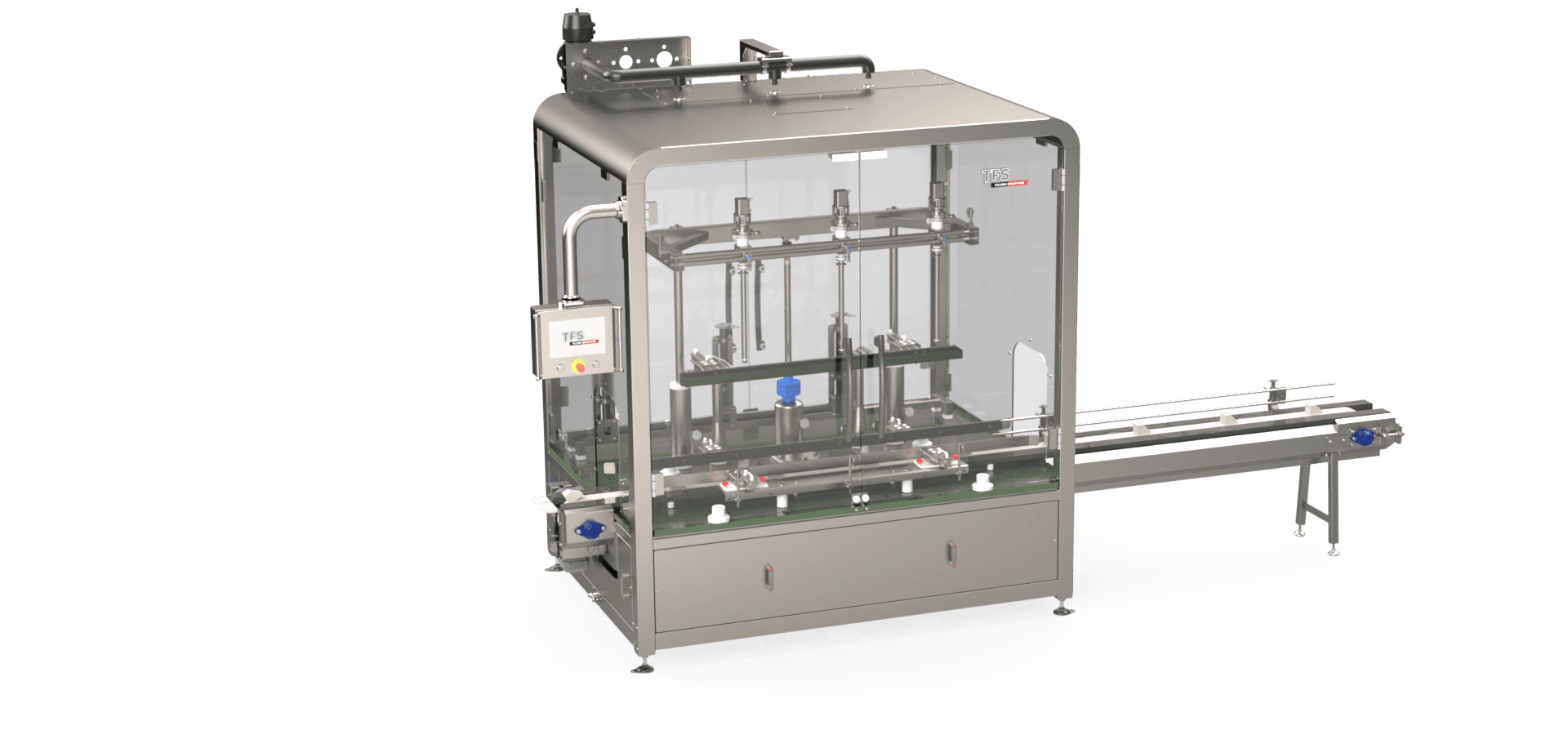

Render Heron Filling Line

Heron Filling Line

  • Fully automatic
  • Servo driven lances
  • Multiple lances possible for more capacity
  • Suitable for various sizes of cans, buckets and bag-in-boxes
  • Safe and accurate
  • Extension to complete filling line possible
Joep van Bussel TFS Filling Solutions Joep (Account Manager TFS)
Requesting a quote?
Condor en Heron filling line samen - TFS vuloplossingen contact

Fully automatic operation

The Heron Filling Line operates fully automatically. The only manual task is to take care of the supply and discharge of the canisters. The machine ensures that the containers are accurately positioned after which the lances go into the container by means of a servo-controlled movement. Filling takes place in a few stages: a large dose followed by a smaller dose for a very precise filling. This process not only guarantees precision but also minimizes waste. Finally, a tilt tray under the lances catches any spills.

Technical specifications

Supply Voltage

3-phase 400V ~ 50 Hz + N, PE

Compressed Air

6 bar

Number of filling pistols

3 (optional multiple)

Capacity

350 cans per hour (20L water)

Line Direction

From right to left (otherwise possible)

Pneumatics

Festo

Weighting

Penko

Heron Line - TFS - technische details

Versatile fully automatic filling machine

The Heron Filling Line is suitable for a variety of products, from chemical liquids to food, and easily adapted to specific needs.

Easy operation with touchscreen

The intuitive interface allows operators to quickly select pre-programmed recipes, making filling processes efficient.

Hygienic and safe design

Its open design makes it easy to clean, contributing to hygiene and safety in your production facility.

Expansion options for efficiency

The Heron Filling Line can be expanded with various options, such as conveyor systems and palletizing systems, for a fully integrated process.

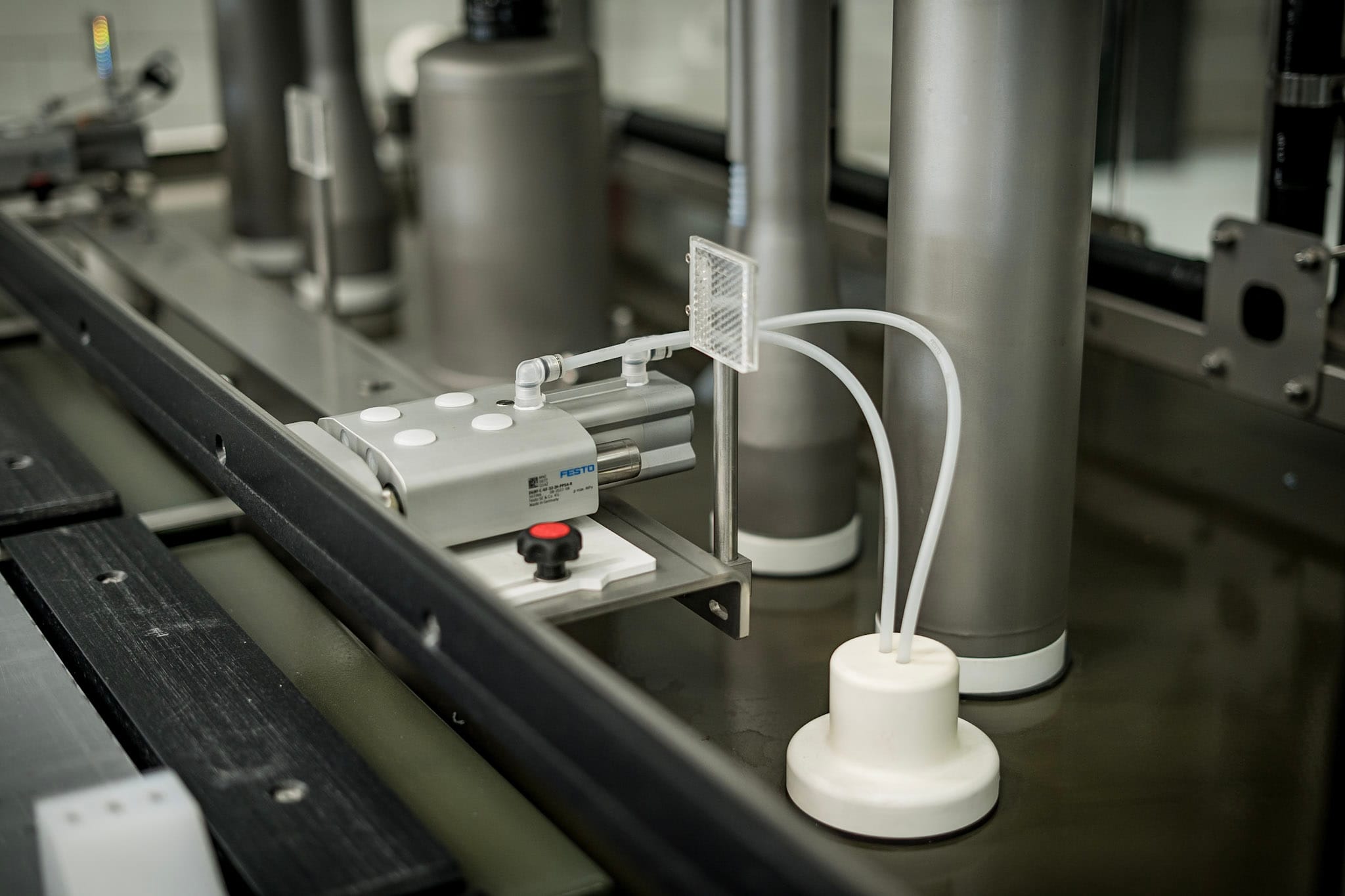

Detailfoto Heron 3

Hygienic and safe design

The Heron Filling Line has an open but safe design that provides protection in addition to good accessibility. The machine is easy to clean. This makes maintenance of the Heron Filling Line easy and contributes to safety and hygiene within your production facility.

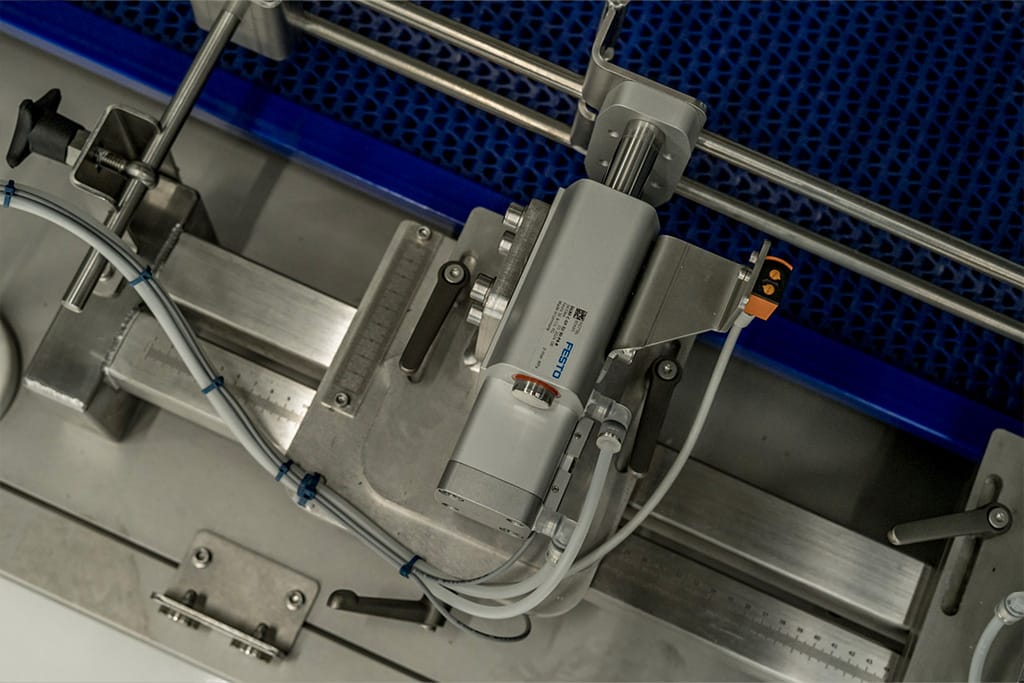

Volautomatisch - afbeelding TFS filling solutions

Available options

  • Additional lances for higher capacity (standard are 3 lances)
  • Piping for discharge of rinsing water
  • Top table for jerrycans
  • Automatic cap sealer ( Condor Capping Machine)
  • Feeding and discharge belts
  • Palletizing robot for automated palletization
  • Labeling machine for packaging labeling
  • ATEX version

Extensions possible

The Heron Filling Line can be fully customized and expanded based on your wishes and specific product requirements. Due to its modular structure, it is even possible to expand the Heron Filling Line into a complete filling line. This expansion also makes it possible to automate logistical processes. Consider the supply and removal of packaging with a transport system, buffer tables, piping and tank construction.

Linking with a palletizing system (the Palletiser) and an automatic cap sealer ( Condor Capping Machine) is also possible. These additions make the filling machine a fully integrated and efficient production process.

Downloads and data sheets

View the available downloads and technical data sheets of the Heron Filling Line here. Discover all specifications and possibilities for your production process.

Download brochure Download data sheet
