The Eagle Filling Line XL is a fully automated filling machine designed for the efficient and precise filling of drums and IBC’s.

One of the key advantages of the Eagle Filling Line XL is the complete automation of the filling process. The operator simply selects the desired pre-programmed filling process and packaging quantity via the easy-to-use touchscreen, allowing the operator to easily switch between filling processes.

Thanks to its ability to integrate with an ERP system, the filling process can be seamlessly connected to existing business software and production processes. Once the correct filling program is selected, the rest of the process is carried out automatically. The machine’s vision system accurately detects the opening of the packaging. Then the filling pistol drops into the opening of the packaging via a servo-controlled motion. This ensures that each package is filled precisely.

Get in touch

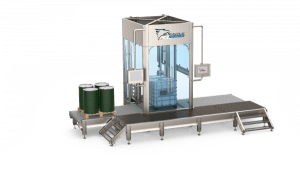

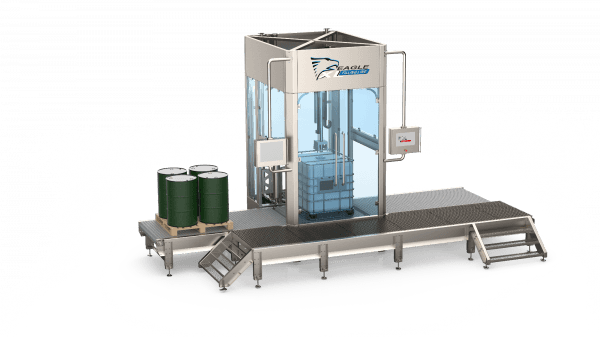

Render Eagle Filling Line XL

Pelican Filling line

  • Robust TVS Frame
  • Semi automatic
  • Modular
  • Gravimetric, Penko
  • Servo driven lance
  • Touchscreen with program storage
Joep van Bussel TFS Filling Solutions Joep (Account Manager TFS)
Requesting a quote?
Detailfoto Pelican 3

Precise and Efficient Filling with the Dosing System

The Eagle Filling Line XL uses a ‘fine/course/fine’ dosing system to ensure a high level of accuracy during the filling process. The process starts with a slow initial dose to prevent foaming, filling the packaging to just beyond the pistol tip, followed by rapid dosing to shorten the overall dosing time. Finally, the pistol dispenses at a slower speed to ensure the exact amount of liquid is dispensed. As a result, the machine is ideal for products that require precise filling, is very efficient and reduces waste to a minimum.

Technical specifications

Supply Voltage

3-phase 400V - 50 Hz + N, PE

Compressed Air

6 bar

Capacity

Depending on product/weight

PLC / Touchscreen

Siemens

Electro

Siemens/Festo

Pneumatics

Festo

Weighing

Penko

Eagle Line - TFS - technische details

Fully automated process

Easy operation with automatic filling and ERP integration.

Precise and efficient dosing

The advanced system ensures that the exact amount of product is dispensed.

Suitable for a wide range of liquids

Process chemicals and food products without compromising accuracy.

Maximum safety and ease of maintenance

Robust design with emergency stop and easy to clean for optimal hygiene.

TFS afvulmachines voor IBC’s, vaten en jerrycans

Suitable for a wide range of products

One key advantage is the ability to process various liquids accurately. Whether it’s chemical liquids (flammable materials, aggressive chemicals, or ink and paint components) or food products, the Eagle Filling Line XL can be customized to your specific needs. This allows for the handling of multiple product lines without compromising precision or efficiency, making it ideal for companies to quickly switch between different product types

Technische ondersteuning tumb - TFS filling solutions

Safety first

The Eagle Filling Line XL has been designed with the highest safety standards in mind. The machine is equipped with several safety features, including an automatic emergency stop and safety shields. This ensures effective protection for both the machine and the operators. The machine’s high reliability ensures that your production process runs smoothly and without interruptions, even with intensive use.

The machine features a robust stainless steel frame and is easy to clean. Hygiene and ease of maintenance are essential factors, allowing the machine to be quickly and easily cleaned between product changes. This contributes to an efficient production process without unnecessary downtime.
Additionally, the safety measures are designed to comply with relevant regulations, providing peace of mind for companies during their production activities. This allows you to focus on your core processes while the Eagle Filling Line XL ensures a safe working environment.

Optional Features

The Eagle Filling Line XL can be adapted and expanded with various options. Depending on your specific production requirements, some possible enhancements include:

  • Nozzle cleaning (both internal and external possible); CIP system
  • Central/point extraction
  • ATEX
  • Extra filling nozzles
  • CIP Skid
  • Nitrogen supply during filling
  • Feeding/discharge belts
  • Platforms

Through various modules, the Eagle Filling Line XL can even be expanded into a complete filling line. This makes it possible to also automate the logistical processes related to filling. As a result, you get a fully integrated production line where not only the filling but also the supply and discharge of packaging are automated.

Downloads and data sheets

The operator moves the lance above the opening of the packaging and presses start, then the filling cycle is started. The lance then sinks into the packaging by means of a servo-controlled movement.

Download brochure Download data sheet
