The Condor Capping Machine is specially designed for automatic sealing of jerry cans with different types of caps.

The advantages are numerous such as greater flexibility, easy maintenance and low operating costs. Meet the Condor Capping Machine from TFS.

The Condor Capping Machine is suitable for sealing different types of canisters, making it widely applicable in various industries. It is also possible to easily convert this machine to a different type of cap. This makes it ideal for companies working with different products and packaging formats (with standard screw caps, child-resistant caps or other variants) without time-consuming adjustments or changeovers.

Get in touch

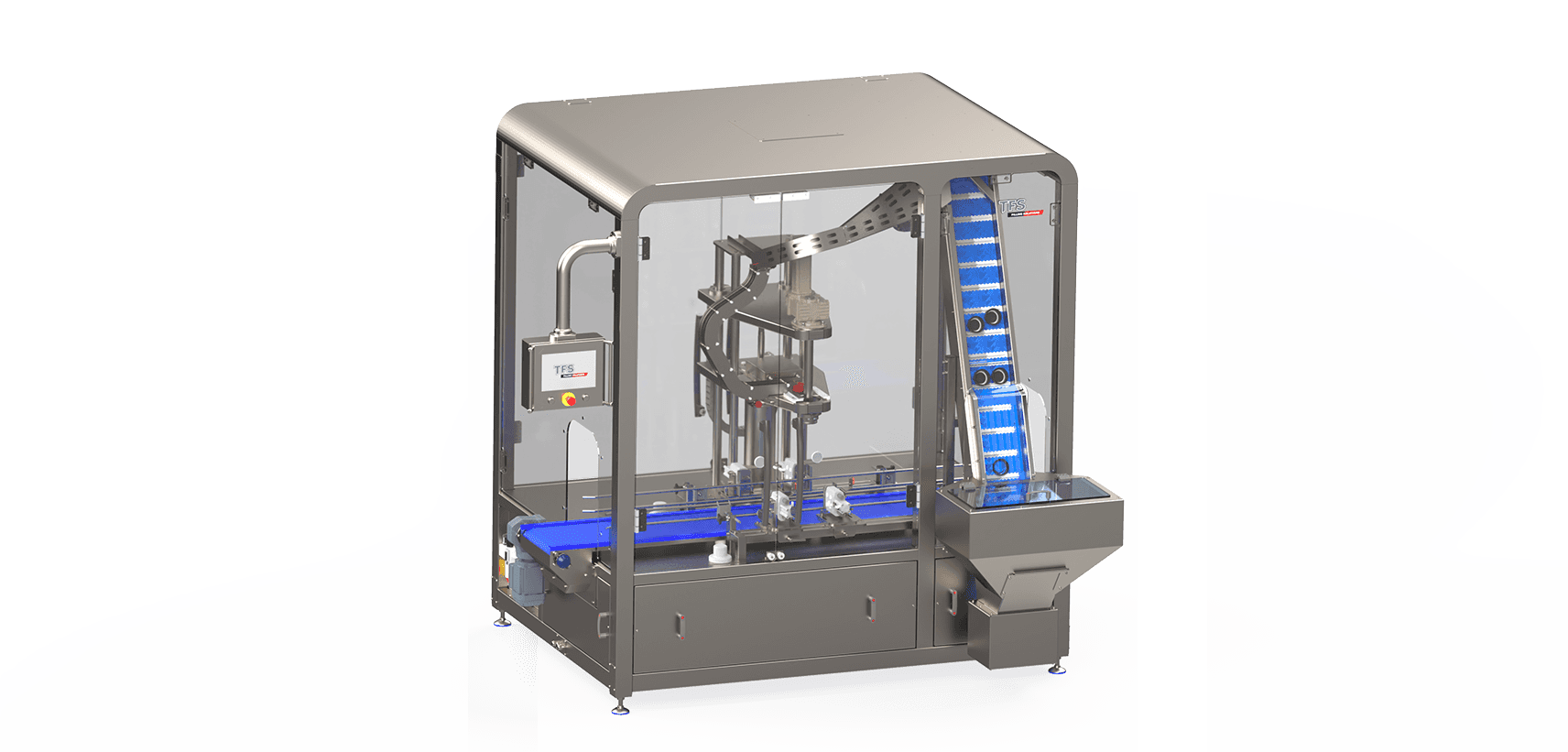

Render Condor Capping Machine

Condor Capping Machine

  • Can be flexibly integrated into any line
  • Suitable for various sizes of cans
  • Tightening torque freely adjustable (up to 25 Nm)
  • Low air consumption
  • Touchscreen with program storage
Joep van Bussel TFS Filling Solutions Joep (Account Manager TFS)
Requesting a quote?
Condor filling line samen - TFS vuloplossingen contact Nederland

Flexibly adjustable via touchscreen

One of the key features of the Condor Capping Machine is its user-friendly touchscreen control panel. Operators can easily choose from one of the pre-programmed recipes to select the correct cap profile. This also sets the tightening torque, which is freely adjustable depending on the cap type and canister specifications. This ensures consistent, high-quality closure regardless of the product being processed.

Technical specifications

Supply Voltage

3-phase 400V ~ 50 Hz + N, PE

Compressed Air

6 bar

Cap type

standard DIN 51 and/or DIN 61

Capacity

450 cans per hour (depending on execution)

Line Direction

From right to left (otherwise possible)

PLC/Touchscreen

Siemens

Pneumatics

Festo

Condor Line - TFS - technische details
Condor filling line samen - TFS vuloplossingen

Flexibly adjustable via touchscreen

The Condor Capping Machine is easily operated via a touchscreen, which allows quick adjustment of the cap profile and tightening torque.

Low air consumption for sustainability

The machine consumes little air, which lowers operational costs and reduces carbon footprint without sacrificing performance.

Easy cleaning and maintenance

The stainless steel design makes it quick to clean and requires minimal maintenance, minimizing downtime.

Automatic cap feeding

The machine automatically feeds caps through a specially designed infeed conveyor, ensuring efficient and error-free processing.

Integration and Low Air Consumption

The Condor Capping Machine is designed for easy integration into existing filling lines, allowing the production process to be seamlessly expanded. This makes the machine ideal for companies with automated filling lines that want to optimize their sealing process.

With low air consumption, the Condor Capping Machine provides a dual benefit: lower operating costs and a reduced ecological footprint thanks to decreased electricity usage. Its smart airflow technology minimizes waste without compromising performance, making the Condor Capping Machine a cost-effective and sustainable choice.

Detailfoto Condor Line - TFS Filling Solutions

Easy cleaning and minimal maintenance

Easy cleaning is one of the core features of the Condor Capping Machine. Hygiene and ease of use were at the center of the machine’s design. Thanks to the open design and the use of a stainless steel frame, the machine can be cleaned quickly and thoroughly. In addition, the machine requires virtually no maintenance resulting in minimal downtime and low maintenance costs.

Download data sheet

Automatic cap feed

With the Condor Capping Machine, the caps are fed in at the front of the machine. They are then conveyed to the closing head via a chute. This process is fully automatic, increasing productivity. The machine comes with a specially designed cap feed conveyor. Here the caps are collected in a buffer bin. From this bin, the caps are automatically fed to the closing head for efficient processing. This ensures a continuous flow of products without interruptions or errors.

Downloads and data sheets

View the available downloads and technical data sheets of the Condor Capping Machine here. Discover all specifications and possibilities for your production process.

Download brochure Download data sheet
